Overview
Chain crusher is applied to the shattering of the block in the production of organic fertilizer, Also, it is widely used in chemical industry, building materials, mining and other industries. This machine use high-intensity wear resisting and cemented carbide chain plate with synchronous speed, and it has reasonable design for entrance and out quarrel, so which results in such advantages: fully broken, difficult to stick wall, easy to clean.

The function and structure

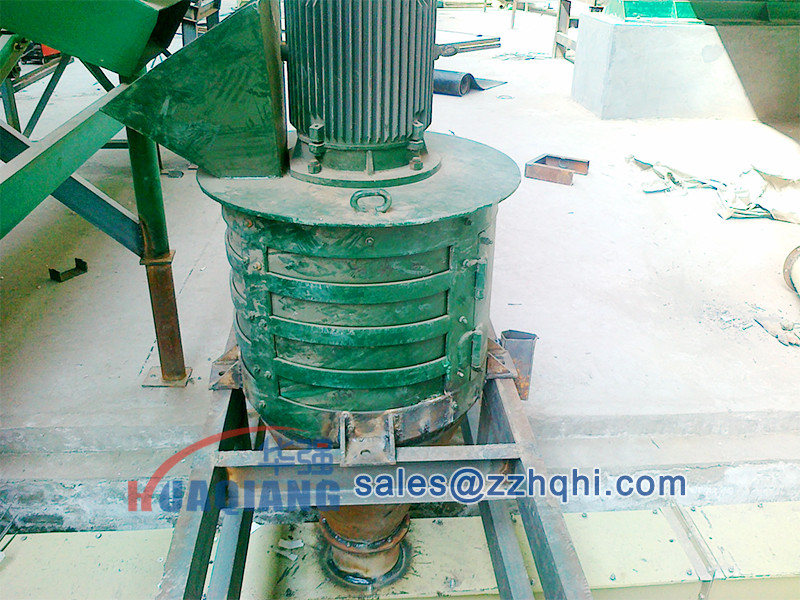

There are two types structure: one is vertical type with single motor, the other is horizontal type with double motor. The main working parts of Chain crusher is the rotor with steel chain, the steel chain connected to the rotor at one end, and connected the chain head with Wear resistant steel material. Chain crusher belong to impact crusher by high speed rotating chain to crushing the materials. Double rotor structure of horizontal chain crusher has its own drive motor rotor shaft, and the circumference speed of Chain head within the scope of the 28 ~ 78 m/s. Horizontal chain crusher is consist of feed inlet, engine body, outlet, rotor with bearing, gearing and reducer. There were liner panel sticking to the engine body in case of the friction between materials and engine body. In addition, it equipped with maintenance window easy access.The engine body and gearing were installed on the pedestal, and the shock absorber is involved with base under the pedestal.
